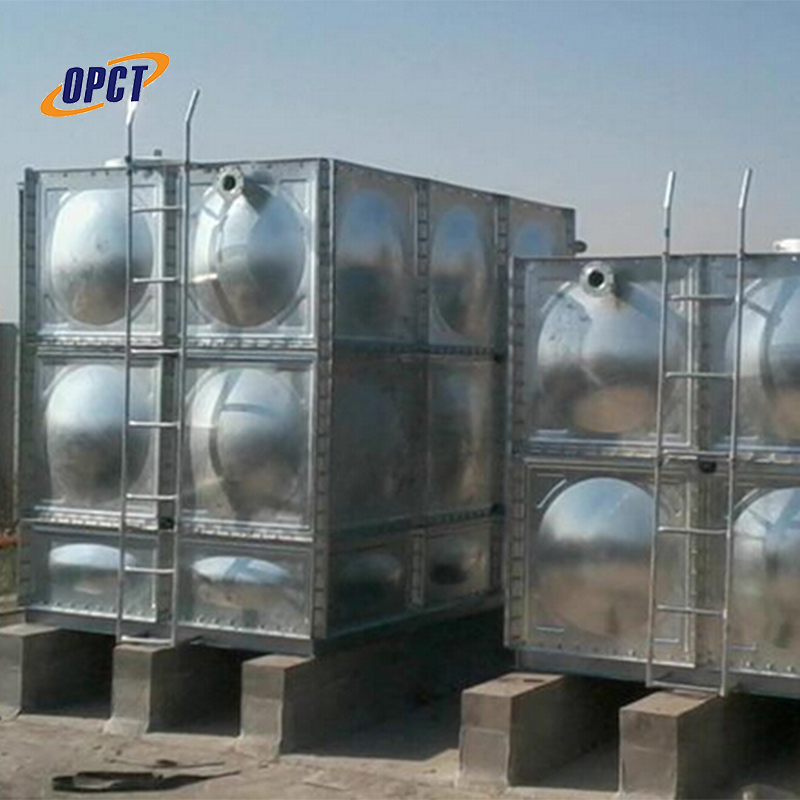

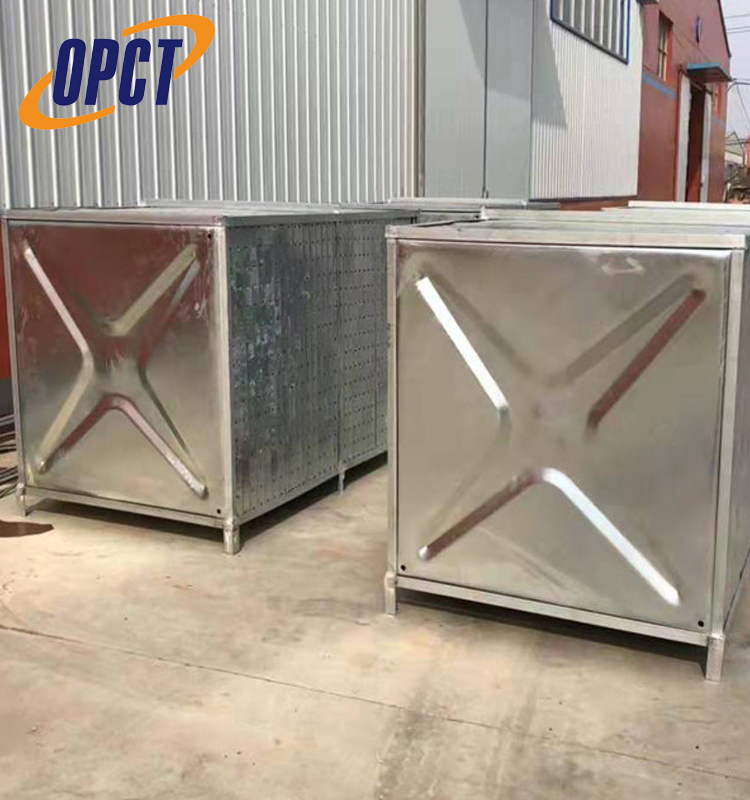

Galvanized Steel Farm water tank 10000 Liter

Galvanized Steel Combined Water Tank is punched by Q235 into 500mm*500mm or 1000mm*1000mm and 1000mm*500mm standard panels, drilling around, after HDG treatment, assembly at site. When combined, the gap between two standard panels is sealed by silicon pad, connected by bolts.

2. Anti-aging, no distorsion, no infiltration .

3. Easy to clean and conveniently to install and assemble.

4. It can storage not only hot water, but also cold water, and has a better shockproof and shock resistant ability.

Bolt. nut & washers: stainless steel 304 material.
Sealing material: Non-toxic P.V.C foam tape shall be used in between the joints
Covers: The tank cover shall be constructed from 1.2mm to 3.0mm of thickness galvanized Q235 steel material according to the requirement
Flanges : The sectional panels shall be pressed to double flanges at the angles of 45 degree and 90 degree to the face of the plate on four sides.
Reinforcement Method : All tanks are internally braced with angle stays to endure the rigidity of the tank when filled with the water. The Top panel is supported by top panel support, which shall be made of Q235  material according to requirement.

Precautions

1.When you order should provide water tank size, take over the place, diameter size.
2.Water tank can be supporting supply.
3.Use water injection temperature for the 4-65 is advisable. Water injection temperature higher than the value can be put forward in order to separately solve.

4.Water tank inside and outside of the other welding not welding, prevent damage porcelain face.
5.Water tank to the ground under should with structure design personnel for approval shall prevail.
6.Water tank should be regularly cleaned, try to prevent water into the trash.

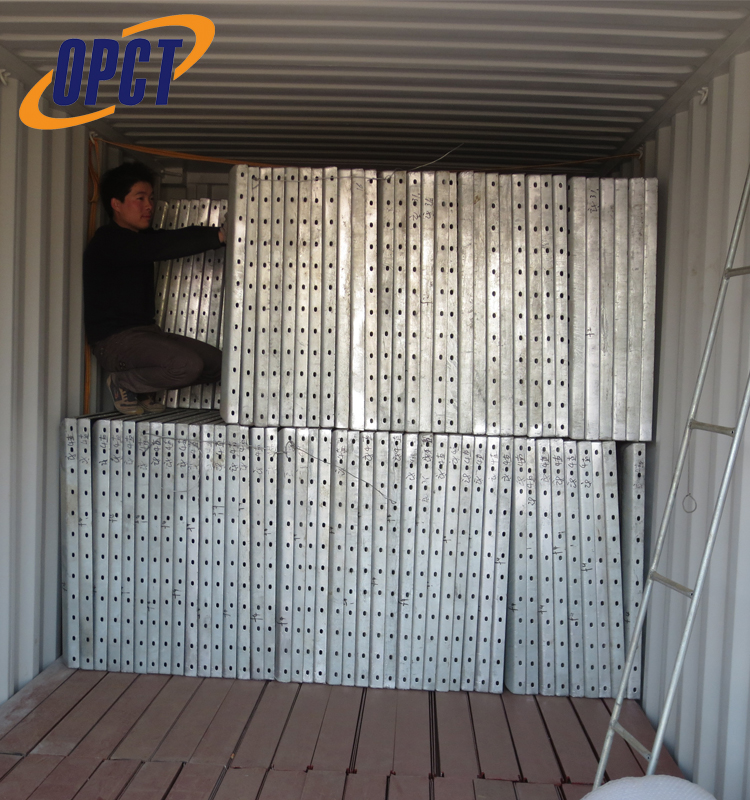

>> Packing: According to the order.

>> Delivery: Within 15 days after the payment was received.
