Model No. : DN50-DN4000mm
Place Of Origin : China
Standard : Ansi
Brand Name : OPCT
Model Number : All
Name : Frp loose flange
Application : Pipe and fittings
Surface Treatment : Gel-coat
Technique : Hand lay up
Temperture : Normal
Certificate : Iso9001
Keyword : frp flange
Flange Type : custom
SURFACE : smooth
Place Of Origin : Hebei, China
| Selling Units | : | piece |
| Package Type | : | Nude packing or bulk cargo |
| Picture Example | : |
|
Our flanges include whole flange, lap joint flange.We can order various specifications and materials flanges,elbows ,reducer and tees.
FRP flange and Frp Pipe fitting is manufactured by the hand lay-up, contact molding and spray-up process. In hand lay-up and contact molding processes veil and alternate layers of mat and woven roving saturated with resin are applied on the mold. In spray-up process continuous strand roving is fed through a chopper gun, combined with catalyzed resin, and sprayed onto the mould surface.
|
Product name |
FRP flange / elbow / tee / pipe fitting |
|
Material composition |
FRP / GRP |
|
Usage |
Connecting pipe line and keep its leakproofness,convenient for replacing pipe line . |
|
Trade terms |
EXW, FOB, CNF, CIF |
|
Eco-friendly |
Yes |
|
Sample provide |
Yes |
|
Sample time |
3 days after payment |
|
OEM |
Yes |
|
Shipping way |
By sea/land |
|
Product show |
|

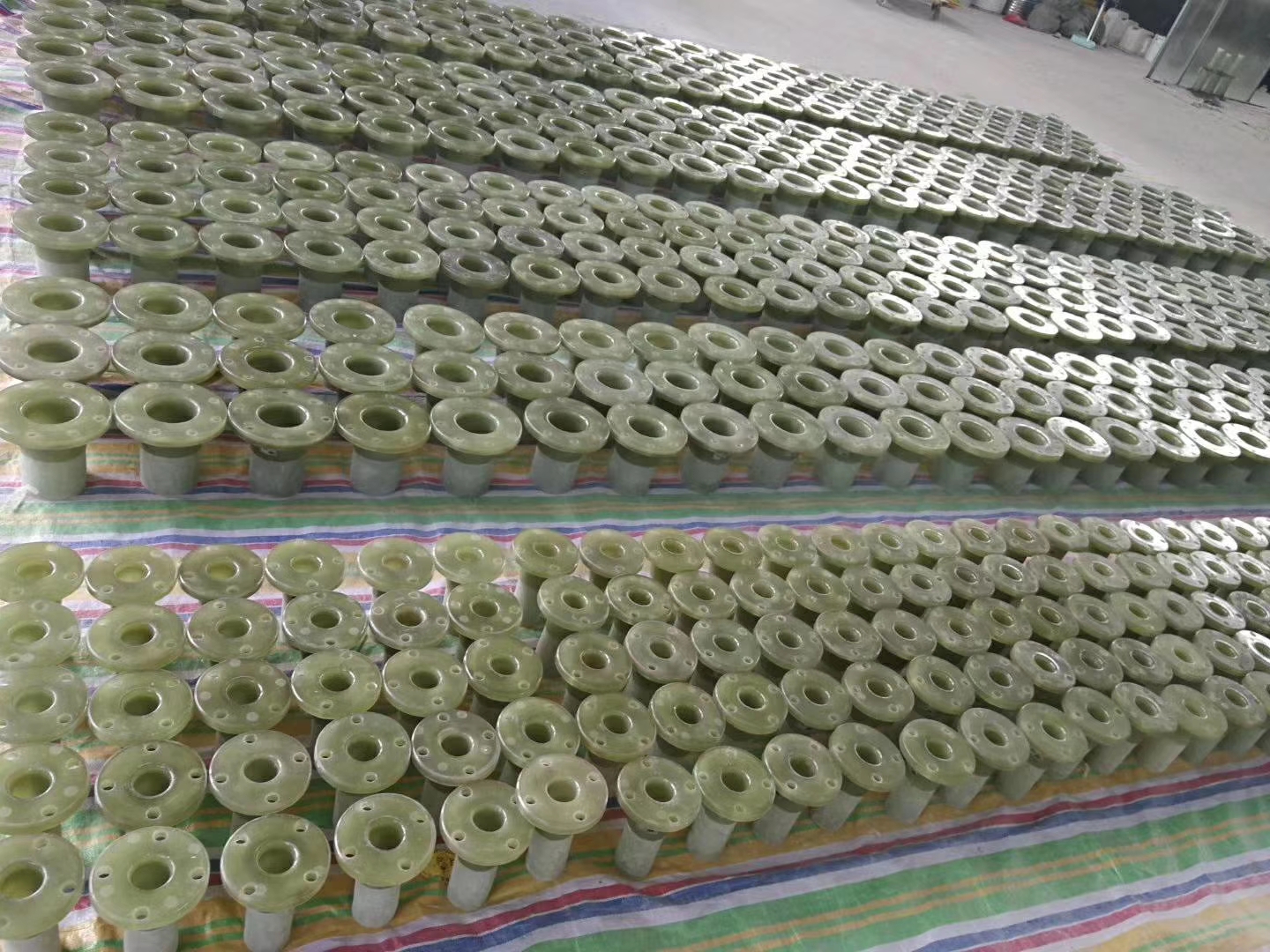

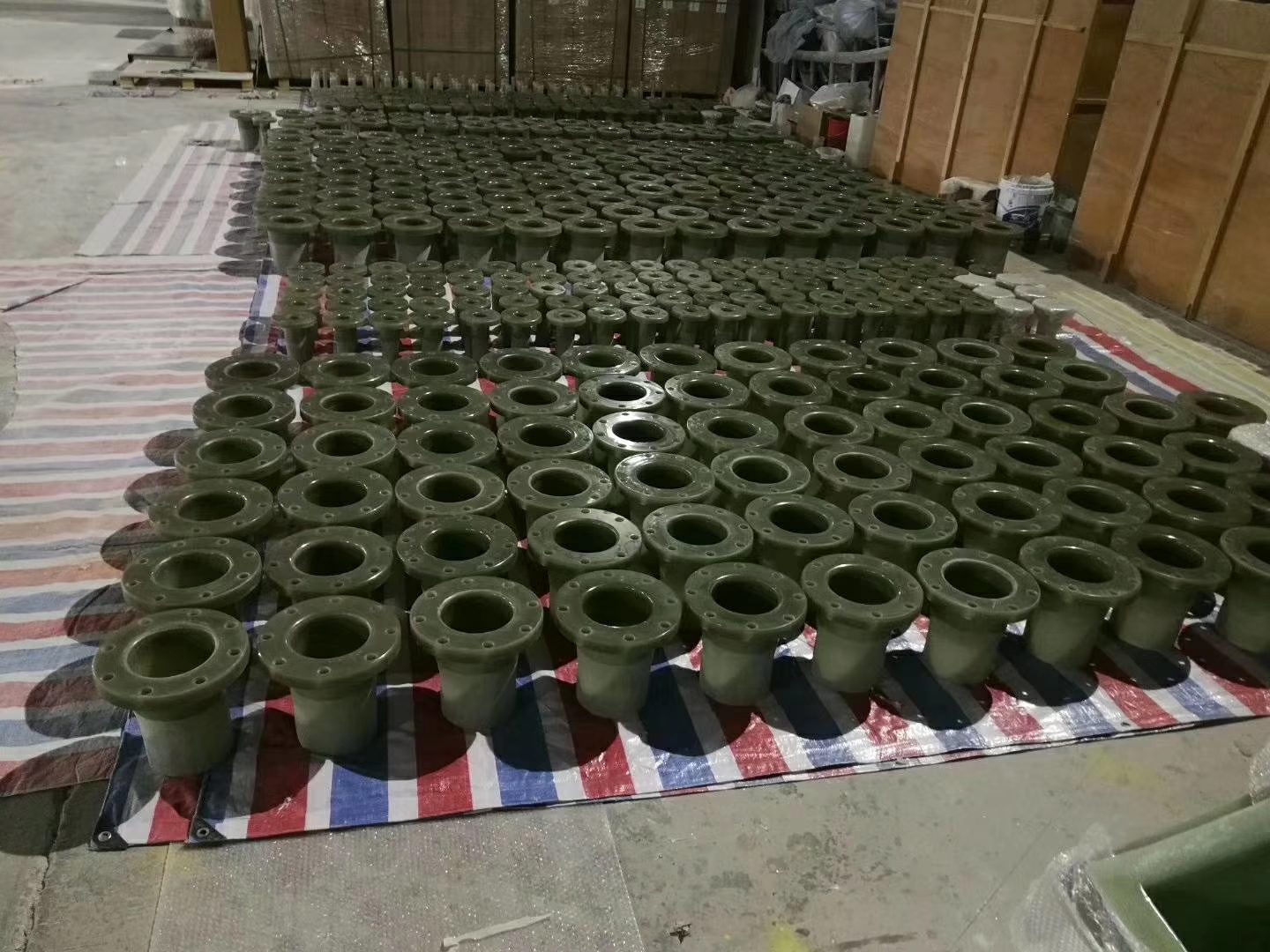

FRP flange |
Flange is the fitting that make the pipe and pipe and valve connect with each other,connect to the pipe end.On the flange,there have holes,use bolts to make the two flanges fasten.Sealing teh flange use gasket.
|
FRP elbow |
|

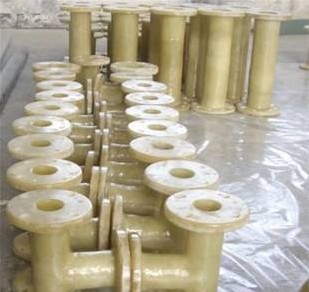

FRP tee |

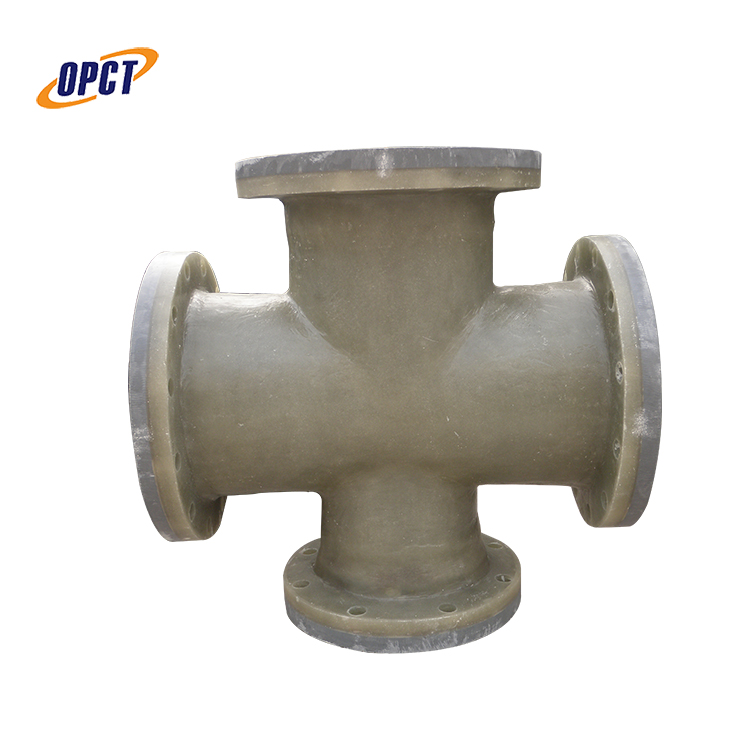

There are three branches tee ,four branchers tee,Y-type pipe and so on .
Our pipe fittings include 45 degree elbow, 90 degree elbow, tee, cross, flange, Y-type pipe, adapter pipe, and so on. Some pipe fittings could be processed live, such as elbow, triplet, cross, and so on, in order to easy implementation. Any requirements,feel free to contact with us!
| Specifications |
DN:diameter S:flange plate thickness L:length
The above parameters are mainly flange parameters, if you want to know the parameters of other products, please contact us!
| Advantages |
1 Dimensions
Flange, hub, and neck thicknesses meet or exceed ASME Sec. X, ASME RTP-1, ASTM D3299, and PS 15-69.
2 Pressure Rating
Flanges are stocked in 50psi, 100psi, and 150psi. All bolt holes and bolt circles are per ANSI B16.5 150 lb. drilling.
3 Resin Coating
All bolt holes and spot facing are resin coated.
