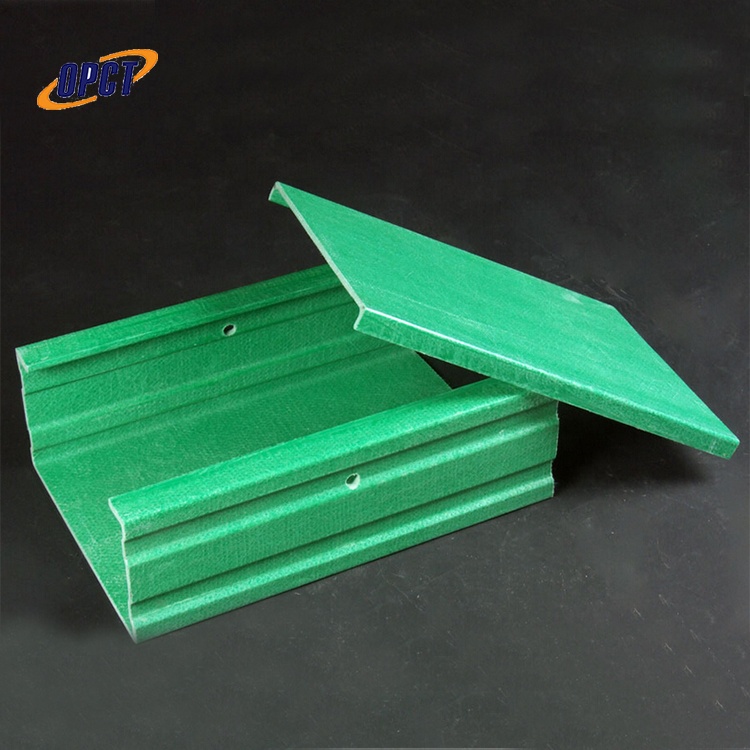

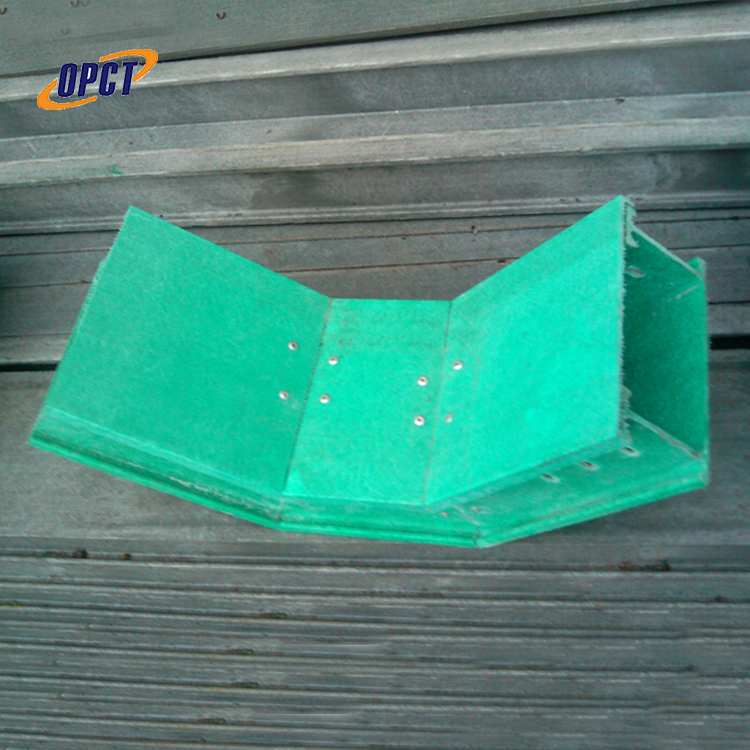

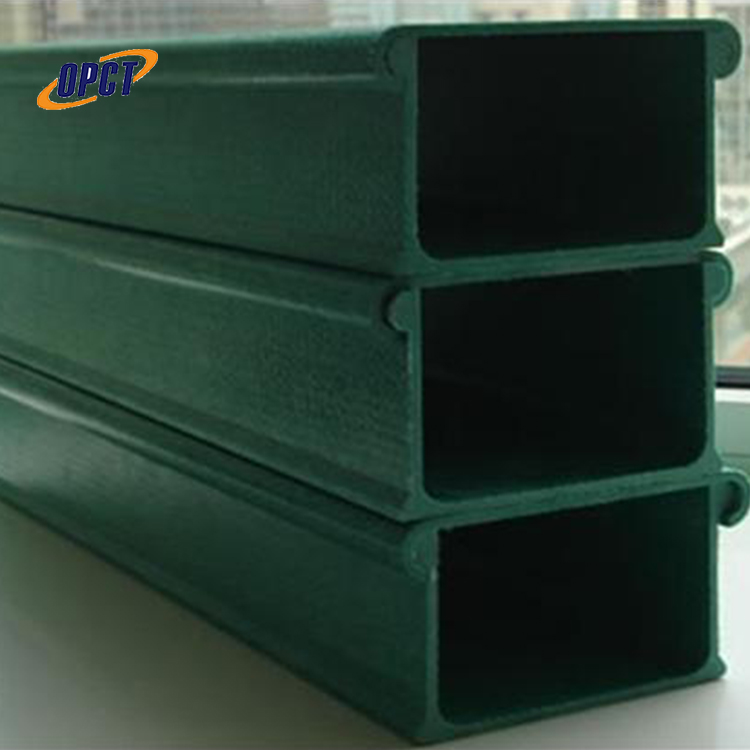

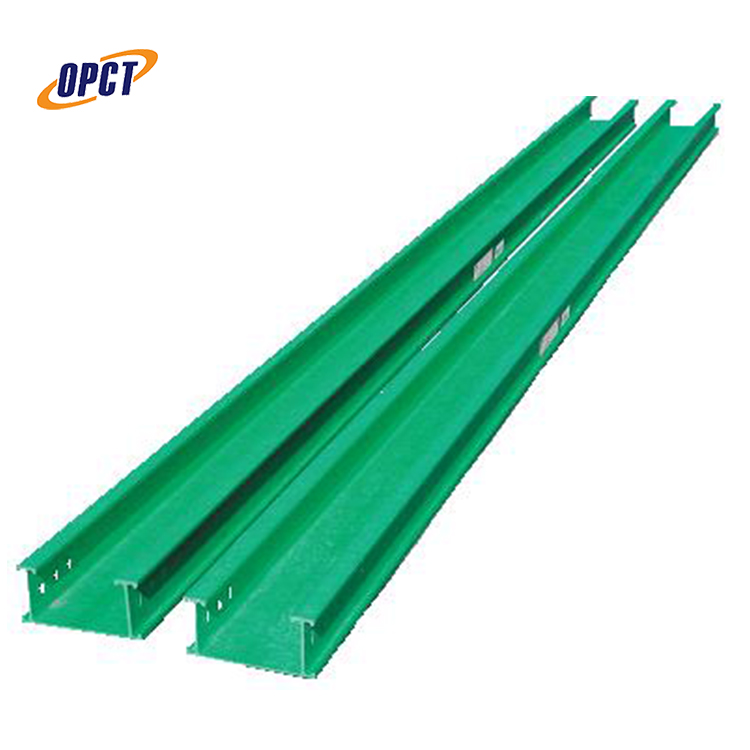

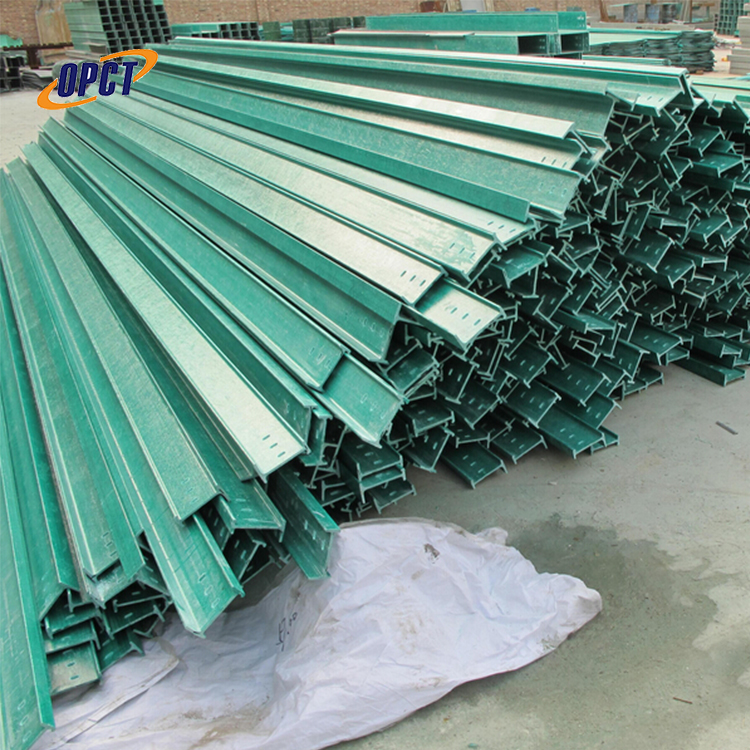

FRP / GRP Cable Ladders Trays Support System

F iberglass reinforced plastic (FRP) anti-corrosion cable bridge or tray is made of glass fiber, epoxy resin and other special materials, it has reasonable mechanical structure, light weight,high strength, strong corrosion resistance, flame retardance, aging resistance and good insulation performance, it can be used in a large range of temperature and the environments of high humidity, heavy acid and or heavy alkali. the service life is 5-6 times of the steel bridge, the installation distance of one ton of FRP cable bridge or tray is 1.5 times of the steel bridge with same specification and same weight.FRP cable bridge can be overhead laying; erected under the beam or floor slab,can be fixed laterally by indoor and outdoor walls, posts, tunnels, cable trench walls., can also be installed in the open air.

Notes:

1. Each ends of cable trays should be connected by 6 holes when the height is 50-100 mm; when their height is 150-220 mm, holes should be 12.

2. Support distance: it should not be more than the support distance and load capacity allowed by load curve.

3. Width of cable trays: some remarkable room should be served when you choosing the cable trays width, in order to add cables in the near future.

4. Laying separately: when electric cables and controlling cables are few, they could be laid in the same cable tray, as long as they are laid separately by clapboard.

5. Fixing cables: when collecting cable trays are laid horizontally, connections among trays should be set on 1/4 of skip distance, horizontal cables should be fixed every 2 meters, and vertical cables should be fixed every 1.5 meters.

6. cable trays device should have another grounding equipment.

HEBEI DONGDING CHEMICAL TRADE CO.,LTD is made up of several manufacturing enterprises, is a high tech enterprises that collection of sale for project consulting, designed and developed, engineering design, materials purchasing, transport of goods, equipment installation and training debugging, and has passed ISO 9001:2015 international quality management system certification, our company is the national foreign trade, the general administration of customs approved the company has import and export right.

We mainly produce potassium sulfate production equipment , FRP tank production equipment , FRP Pultruded products(include FRP Square tube/Rectangular tube /Round tube /Rod  / U channel / I beam / Flat / Angle /Decking panel /Plum blossom tube /Ladder carling /Ladder crossgirder ), Frp Pipe , Frp Tank , FRP septic tank , Frp Water Tank , FRP grating , Cooling tower ,FRP scrubber,Cable tray, Frp Cover , Frp Flange , FRP rock bolt ,FRP handrail and so on,Looking forward to your visit and communication!

>> Packing: According to customer's demand

>> Delivery: Within 30 days after the payment was received.
