frp filament winding machine fiberglass pipe tank production line

frp filament winding machine fiberglass pipe tank production line

$200000 1-4 Others

$199000 5-9 Others

$195000 ≥10 Others

Payment Type:	L/C,D/A,D/P,T/T
Port:	All China Ports

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Condition : New

Brand Name : OPCT

Place Of Origin : Hebei, China

Material : Q235

Control System : Plc

Electric Parts Brand : Siemens

Voltage : 380v 50hz

Certificate : Iso

Color : Blue,orange or customized

Feature : long time useful

Usage : Production pipe,tank

Product Type : Round

WHATSAPP : +86-13400480044

Video Outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Hot Product 2019

Warranty Of Core Components : 1 Year

Core Components : Plc, Gearbox, Motor

Warranty : 1 Year

After-sales Service Provided : Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support

After Warranty Service : Video Technical Support, Online Support, Field Maintenance And Repair Service

Local Service Location : None

Applicable Industries : Building Material Shops, Manufacturing Plant, Construction Works

Showroom Location : None

Packaging & Delivery

Selling Units	:	set
Package Type	:	Suitable for sea transportation

Product Description

frp filament winding machine fiberglass pipe tank production line

Product description

Frp Pipe winding machine

Computer-controlled fiber winding sand pipe production line consists of the lining machine, computer-controlled sand winding machine, curing station, dressing machine, stripping machine and resin mixing station six parts. The computer-controlled sand-winding machine control center used the advanced industrial computer manufactured in Taiwan, China, just enter the parameters of the wound product, the computer can automatically complete the design of product winding wire, and then control the speed of the mold and the car to walk compound movement. Sand winding is not affected in ordinary glass pipe anti-seepage layer and winding reinforcement layer case, through the application of quartz sand and resin play that is to reduce costs and increase the role of stiffness. Produced products compared with ordinary glass fiber reinforced plastic pipe, the cost can be reduced by 40%, a substantial increase in rigidity, with light weight, corrosion resistance, internal resistance coefficient is small, low overall cost advantages, can be widely used in urban water supply and drainage, agriculture Irrigation, petrochemicals, marine development, sewage treatment and other fields, the entire production line with an annual output of up to 5000t. The production line with a reasonable structure, innovative design, easy operation, high degree of automation features, praised by the majority of users.

QFW-2500VI main specifications:

1. Installed capacity: 193.6KW
2. The largest diameter of the production pipe: Φ2500mm
3. effective length of the production pipeline: 12000mm
4. production capacity: 1000kg / h
5. curing station heating device temperature: 105 ℃ -160 ℃
6. maximum speed: 90m / min
7. The maximum width of yarn sheet: 200mm
8. Yarn feeding speed: 100kg / min
9. Nominal release force: 83t
10. Winch rated pulling force: 5t
11. Trolley Rated Torque Weight: 40t
12. Hydraulic Pump Station Rated working pressure: 16MPa
13. Stripping machine center height: 2000mm
14. Other stand-alone center height: 1500mm

FW-4000III main specifications:

1. Winding diameter range: Φ600-Φ4000mm
2. The maximum winding length: 12m
3. Winding angle: 45 ° -90 °
4. Installed capacity: 9.2KW
5. Positioning error: <1mm
6. The maximum width of yarn: 150mm
7. Production capacity: 500kg / h

Frp Tank winding machine

Computer-controlled vertical winding machine is the most advanced ultra-large diameter winding machine developed by our company on the basis of absorbing foreign advanced technology. The machine is controlled by microcomputer and is especially suitable for on-site winding of large-diameter glass fiber reinforced plastic storage tank. Using the appropriate mandrel, the machine can be wound 4 meters to 25 meters of FRP storage tank. The control center of this machine adopts the PC industrial computer which is produced in Taiwan of China and inputs the parameters of the winding product. The microcomputer can automatically design the winding pattern of the product and then control the composite movement of the mandrel rotation and the up-down movement of the car, Resin fibers evenly distributed regularly in the product liners. The winding machine is a combination of technology and science, such as the rotation of the mandrel, the car moves up and down, winding tape laying, etc. are controlled by the software through the computer. The machine winding glass steel products, widely used in chemical, petroleum, brewing and other fields. The aircraft is reasonable in structure, innovative design, easy operation, reasonable man-machine interface, by the FRP colleagues of all ages.

FW-10000 main specifications

1. Maximum winding diameter : 10m
2. The maximum winding length : 12m
3. Product diameter range : 4m-10m
4. Installed capacity : 14.6KW
5. The maximum width of yarn : 168mm
6. Production capacity : 550kg / h

FW-15000 main specifications

1. Maximum winding diameter : 15m
2. The maximum winding length : 12m
3. Product diameter range : 4m-15m
4. Installed capacity : 18.6KW
5. The maximum width of yarn : 168mm
6. Production capacity : 550kg / h

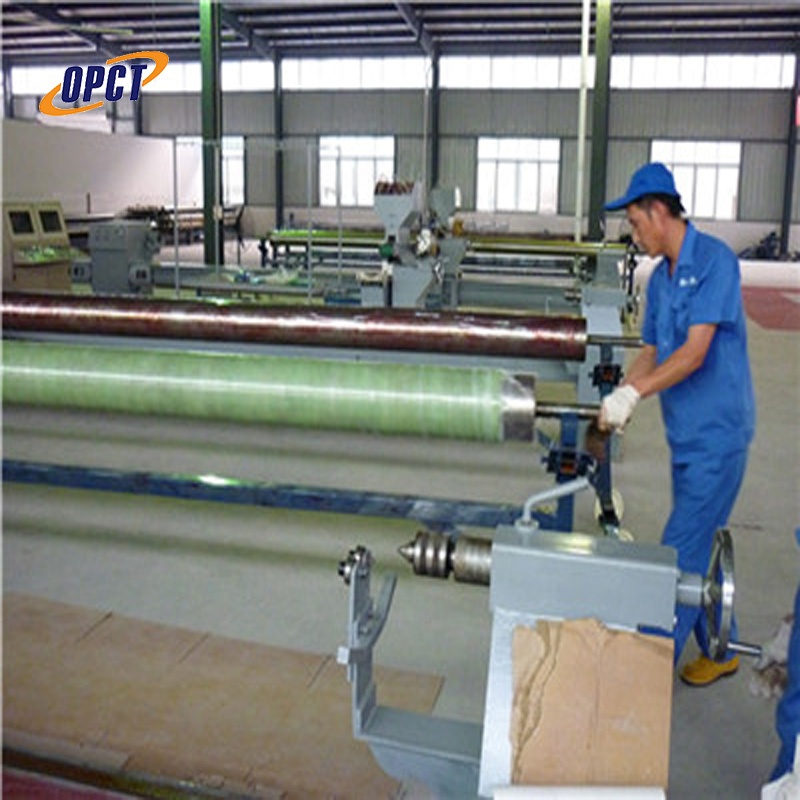

Working process

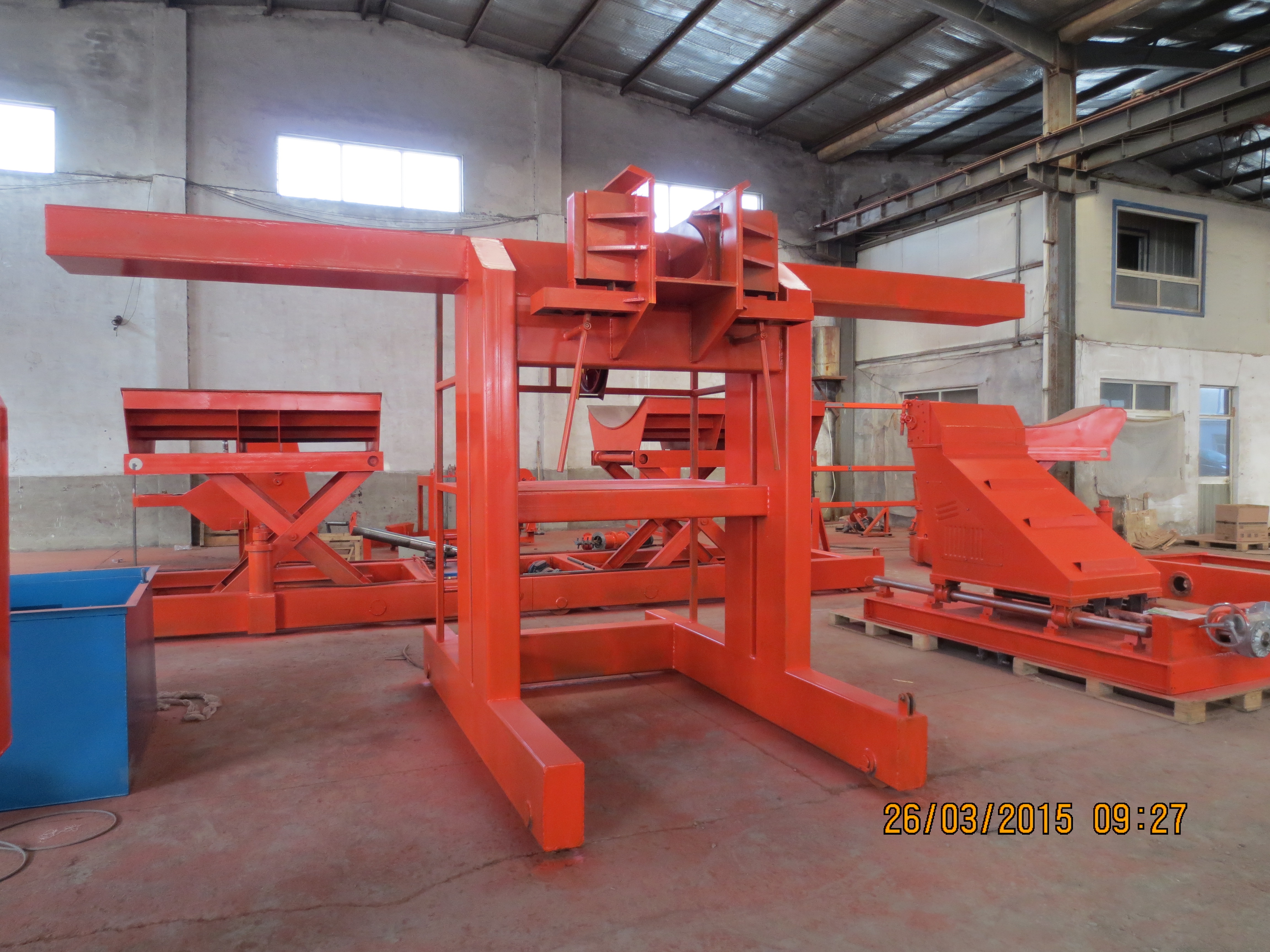

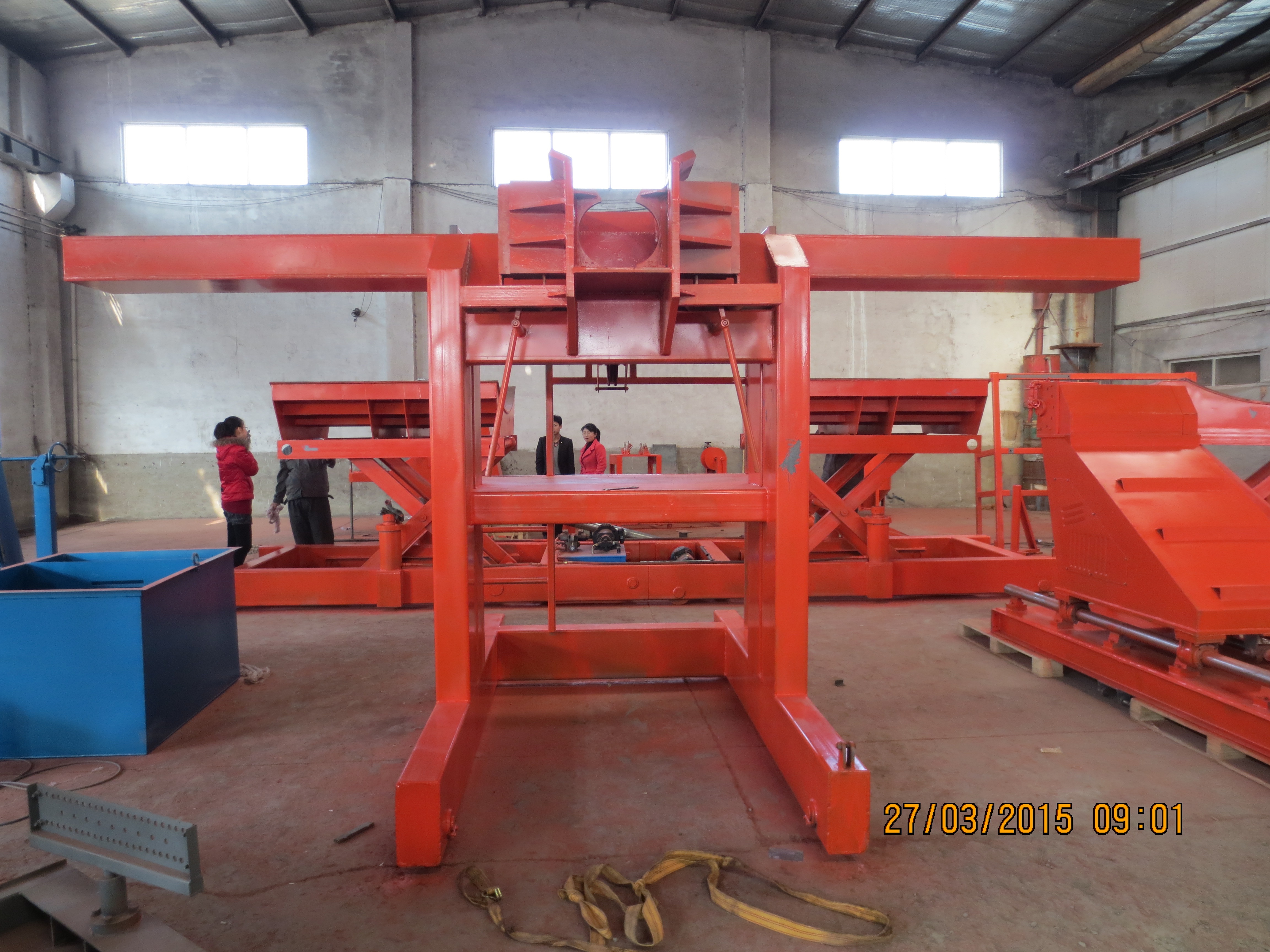

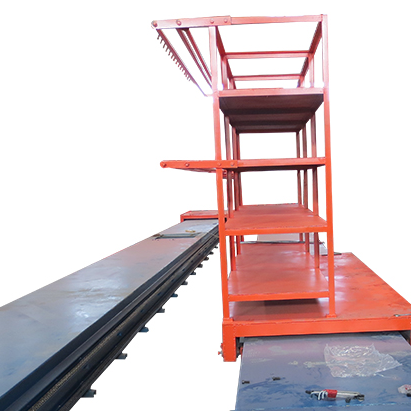

Product details

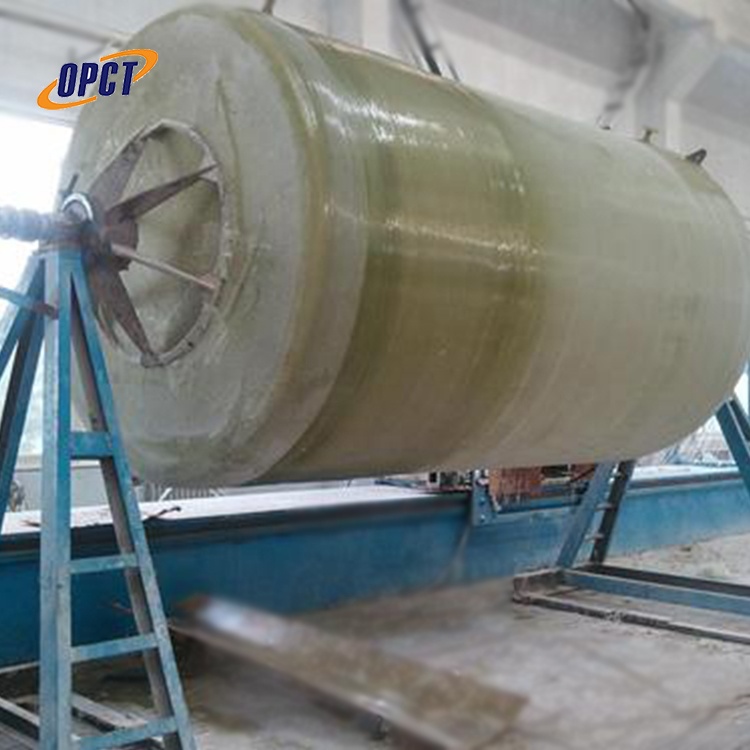

Finished products

Other equipment

Packaging & shipping

>> Packing: According to customer's demand
>> Delivery: Within 60 days after the payment was received.

Company information

HEBEI DONGDING CHEMICAL TRADE CO.,LTD is made up of several manufacturing enterprises, is a high tech enterprises that collection of sale for project consulting, designed and developed, engineering design, materials purchasing, transport of goods, equipment installation and training debugging, and has passed ISO 9001:2015 international quality management system certification, our company is the national foreign trade, the general administration of customs approved the company has import and export right.
We mainly produce potassium sulfate production equipment , FRP tank production equipment , FRP Pultruded products(include FRP Square tube/Rectangular tube /Round tube /Rod / U channel / I beam / Flat / Angle /Decking panel /Plum blossom tube /Ladder carling/Ladder crossgirder ), FRP pipe , FRP tank , FRP septic tank , Frp Water Tank , FRP grating , Cooling tower ,FRP scrubber, Cable Tray , Frp Cover , Frp Flange , FRP rock bolt ,FRP handrail and so on,Looking forward to your visit and communication!

FAQ

1. Q: Are you Trading Company or Manufacturing Factory?
A: We are both manufacturer and trading company. We have our own factory for almost seven years, and we have better service of overseas customers. Welcome to send your inquiry!

2. Q: How about the Delivery time?
A: 60days after receiving the deposit based on the MOQ. Normally, 30-35days to finish the order for a 20ft
container. Welcome to ask for the detailed delivery time according to your order quantity!

3. Q: How can you guarantee the product quality?
A: We have the quality control system ISO9001:2015, and it's been followed strictly. We also have the professional QC team, and each our package worker will be in charge of the final inspection according to the QC instruction beforepacking.

4. Q: What is about the payment terms.
A: Basically, the payment terms are T/T, L/C at sight. Western Union, Alipay.

5. Q: Can you do OEM for me?
A: We accept all OEM orders,just contact us and give me your design,we will offer you a reasonable price ASAP.
