fire galvanized steel flexible insulated water storage tank

fire galvanized steel flexible insulated water storage tank

$2000 1-4 Others

$1980 ≥5 Others

Payment Type:	L/C,D/A,D/P,T/T
Port:	All China Ports

Option:

0.125m3-100m3
100m3-200m3
200m3-500m3

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Condition : New

Applicable Industries : Hotels, Garment Shops, Manufacturing Plant, Food & Beverage Factory, Farms

Showroom Location : None

Video Outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty Of Core Components : 1 Year

Brand Name : OPCT

Material : rubber

Warranty : 1 Year

Rubber : Square

Process : Molding

Panel Size : 1000mm*1000mm,1000mm*500mm,500mm*500mm

Height : 0.5m-4m

Certification : ISO9001

Capacity : 0.125m3-1500m3

Color : Sliver

Application : Storage fire-fighting water or agriculture water

After Warranty Service : Video technical support

Local Service Location : None

After-sales Service Provided : Video technical support, Online support

Core Components : Panel

Place Of Origin : Hebei, China

Packaging & Delivery

Selling Units	:	set
Package Type	:	Pallets for galvanized water tank or we would like to pack according to customer demand

fire galvanized steel flexible insulated water storage tank1



Product Description

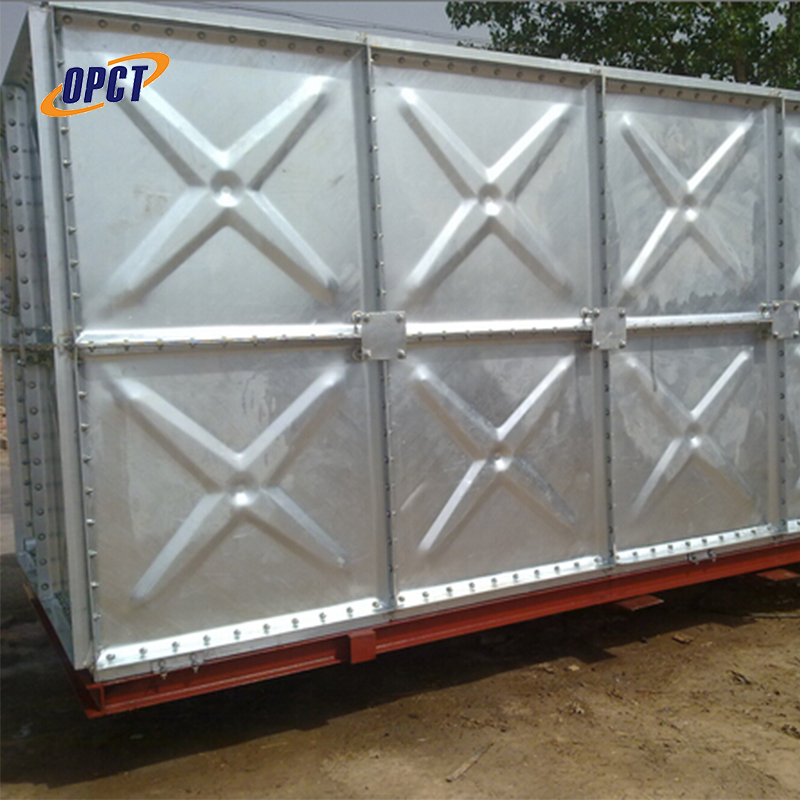

sectional fire galvanized steel flexible insulated Water Storage Tank

Product Description

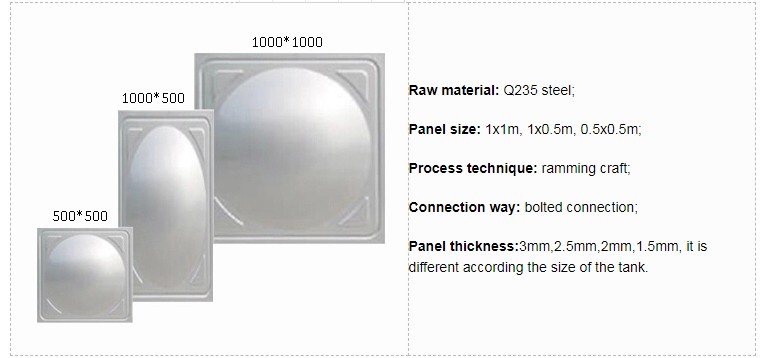

Galvanized Steel Combined Water Tank is punched by Q235 into 500mm*500mm or 1000mm*1000mm and 1000mm*500mm standard panels,drilling around, after HDG treatment, assembly at site. When combined, the gap between two standard panels is sealed by silicon pad, connected by bolts.

Product name	Galvanized Steel Water Tank
Material composition	Q235 steel
Product Size	0.50.5m, 11m, 1*0.5m, etc
Panel Thickness	3mm,2.5mm,2mm,1.5mm, it is different according the size of the tank.
Tank Volume	0.125-1500m3
Connection way	Bolt
Eco-Friendly	Yes
Application	Application

Company Profile

Water capacity varies from 0.125 cubic meter to 1000 cubic meters, height may reach as great as 5 meters. Inflow, outflow tubes as well as return tube's diameter and place is decided by the designer, passages of at least 7000mm is needed around the tank.

1. Easy handle and install,free volume design,no leakage,ideal mechanical structure and meet fire and building standard. 2. Anti-aging, no distorsion, no infiltration . 3. Easy to clean and conveniently to install and assemble. 4. It can storage not only hot water, but also cold water, and has a better shockproof and shock resistant ability.

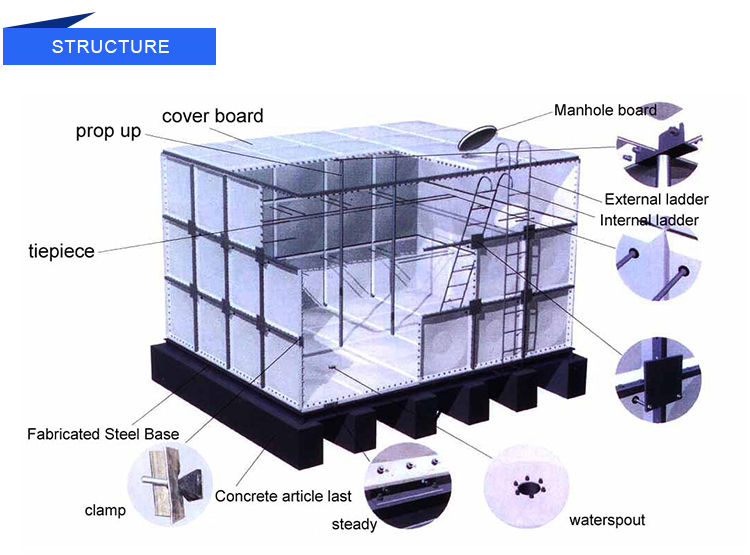

Bolt. nut & washers: galvanized material. Sealing material: Non-toxic P.V.C foam tape shall be used in between the joints Covers:The tank cover shall be constructed from 1.2mm to 3.0mm of thickness galvanized Q235 steel material according to the requirement Flanges :The sectional panels shall be pressed to double flanges at the angles of 45 degree and 90 degree to the face of the plate on four sides. Reinforcement Method :All tanks are internally braced with angle stays to endure the rigidity of the tank when filled with the water. The Top panel is supported by top panel support, which shall be made of Q235 material according to requirement.

This galvanized steel Water tank is widely used in storage and regulation of living water supply & construction water supply, and temporary Water Storage Tanks for expansion of the heating system, condensate tank and construction, geological survey, industry, National defense Water, chemical, and so on. Taking flexible, reasonable plate design, suitable for all capacities combined water tank. Suitable for living water with PH value: 6.5-8.5, using life: ≥ 20 years
