fiberglass pipe winding machine,Filament winding machine

Product name

Frp Pipe winding machine / Frp Tank  winding machine

Certificate

SGS  ISO

Usage

Produce  FRP tank FRP pipe frp tower  FRP septic tank Frp Flange

Trade terms

EXW, FOB, CNF, CIF

Eco-friendly

Yes

Sample provide

No

Sample time

No

OEM

Yes

Shipping way

By sea/land

Product show

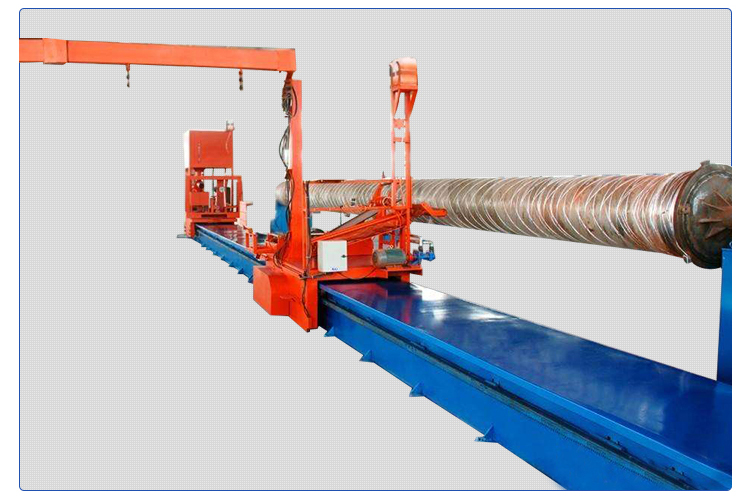

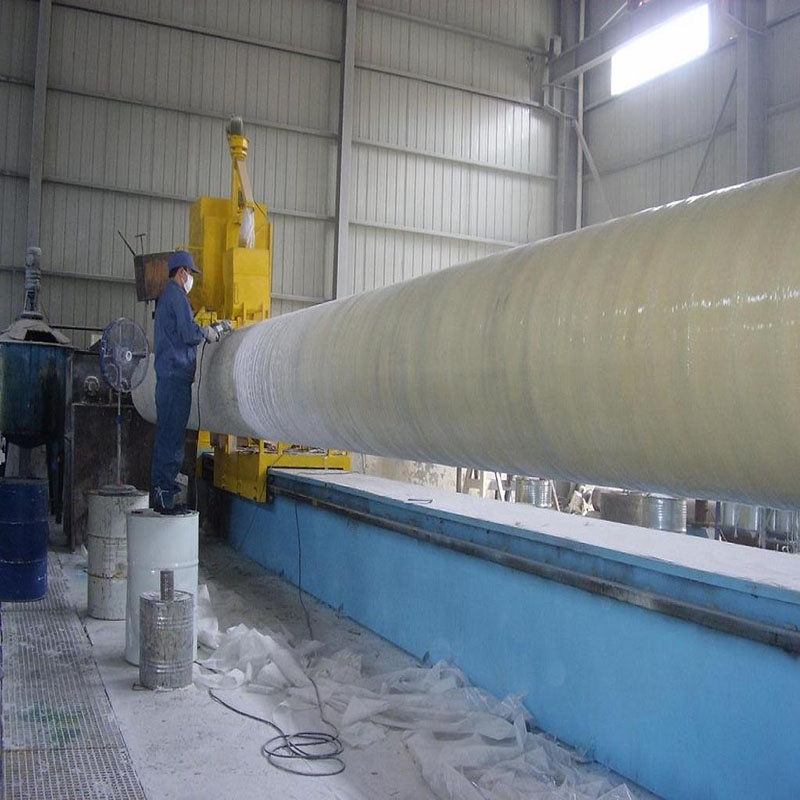

FRP pipe winding machine

Computer-controlled fiber winding sand pipe production line consists of the lining machine, computer-controlled sand winding machine, curing station, dressing machine, stripping machine and resin mixing station six parts. The computer-controlled sand-winding machine control center used the advanced industrial computer manufactured in Taiwan, China, just enter the parameters of the wound product, the computer can automatically complete the design of product winding wire, and then control the speed of the mold and the car to walk compound movement. Sand winding is not affected in ordinary glass pipe anti-seepage layer and winding reinforcement layer case, through the application of quartz sand and resin play that is to reduce costs and increase the role of stiffness. Produced products compared with ordinary glass fiber reinforced plastic pipe, the cost can be reduced by 40%, a substantial increase in rigidity, with light weight, corrosion resistance, internal resistance coefficient is small, low overall cost advantages, can be widely used in urban water supply and drainage, agriculture Irrigation, petrochemicals, marine development, sewage treatment and other fields, the entire production line with an annual output of up to 5000t. The production line with a reasonable structure, innovative design, easy operation, high degree of automation features, praised by the majority of users.

QFW-2500VI main specifications:

1. Installed capacity: 193.6KW

2. The largest diameter of the production pipe: Φ 2500mm

3. effective length of the production pipeline: 12000mm

4. production capacity: 1000kg / h

5. curing station heating device temperature: 105 ℃ -160 ℃

6. maximum speed: 90m / min

7. The maximum width of yarn sheet: 200mm

8. Yarn feeding speed: 100kg / min

9. Nominal release force: 83t

10. Winch rated pulling force: 5t

11. Trolley Rated Torque Weight: 40t

12. Hydraulic Pump Station Rated working pressure: 16MPa

13. Stripping machine center height: 2000mm

14. Other stand-alone center height: 1500mm

FW-4000III main specifications:

1. Winding diameter range: Φ600-Φ4000mm

2. The maximum winding length: 12m

3. Winding angle: 45 ° -90 °

4. Installed capacity: 9.2KW

5. Positioning error: <1mm

6. The maximum width of yarn: 150mm

7. Production capacity: 500kg / h

FRP tank winding machine

Computer-controlled vertical winding machine is the most advanced ultra-large diameter winding machine developed by our company on the basis of absorbing foreign advanced technology. The machine is controlled by microcomputer and is especially suitable for on-site winding of large-diameter glass fiber reinforced plastic storage tank. Using the appropriate mandrel, the machine can be wound 4 meters to 25 meters of FRP storage tank. The control center of this machine adopts the PC industrial computer which is produced in Taiwan of China and inputs the parameters of the winding product. The microcomputer can automatically design the winding pattern of the product and then control the composite movement of the mandrel rotation and the up-down movement of the car, Resin fibers evenly distributed regularly in the product liners. The winding machine is a combination of technology and science, such as the rotation of the mandrel, the car moves up and down, winding tape laying, etc. are controlled by the software through the computer. The machine winding glass steel products, widely used in chemical, petroleum, brewing and other fields. The aircraft is reasonable in structure, innovative design, easy operation, reasonable man-machine interface, by the FRP colleagues of all ages.

FW-10000 main specifications

1. Maximum winding diameter : 10m

2. The maximum winding length : 12m

3. Product diameter range : 4m-10m

4. Installed capacity : 14.6KW

5. The maximum width of yarn : 168mm

6. Production capacity : 550kg / h

FW-15000 main specifications

1. Maximum winding diameter : 15m

2. The maximum winding length : 12m

3. Product diameter range : 4m-15m

4. Installed capacity : 18.6KW

5. The maximum width of yarn : 168mm

6. Production capacity : 550kg / h
