different colors FRP fiberglass cable tray ladder

different colors FRP fiberglass cable tray ladder

$5 100-199 Others

$4.8 ≥200 Others

Payment Type:	L/C,D/A,D/P,T/T
Port:	All China ports

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Place Of Origin : China

Brand Name : OPCT

Type : Cable tray, Square/round

Material : Frp

Max. Working Load : 50-200kg

Product Name : CHINA manufacturer different colors FRP fiberglass cable tray ladder

Color : Black,gray,green,etc.

Certificate : ISO9001

Eco-Friendly : Yes

Sample Provide : Available

Diameter : According to the drawing

Whatsapp : +8615127808552

Width : 50mm~1000mm

Length : 2mm/3m/6m, Customized Length

Side Rail Height : 50-150mm

Packaging & Delivery

Selling Units	:	meter
Package Type	:	According to customer's demand
Picture Example	:

CHINA manufacturer different colors FRP fiberglass cable tray ladder1



Product Description

CHINA manufacturer different colors FRP fiberglass Cable Tray ladder

Product Description

Fiberglass reinforced plastic (FRP) anti-corrosion cable bridge or tray is made of glass fiber, epoxy resin and other special
materials, it has reasonable mechanical structure, light weight,high strength, strong corrosion resistance, flame retardance, aging resistance and good insulation performance, it can be used in a large range of temperature and the environments of high humidity, heavy acid and or heavy alkali. the service life is 5-6 times of the steel bridge, the installation distance of one ton of FRP cable bridge or tray is 1.5 times of the steel bridge with same specification and same weight.FRP cable bridge can be overhead laying; erected under the beam or floor slab,can be fixed laterally by indoor and outdoor walls, posts, tunnels, cable trench walls., can also be installed in the open air.

Advantages

1. Low cost, significant cost savings compared to standard traditional tray products.
2. Light in weight, wide range of sizes.
3. Fast heat dispersion.
4. Strong enough to withstand short circuits. Provides strength, rigidity without additional hardware.
5. Adapts to difficult architectural designs to accommodate changes in direction and elevation of cable runs.
6.Flexible, easy and fast installation. Design allows cable exit or entry at any point.
7. Cables can be secured to clamps or ties.
8.Various hardware accessories available to fix, support and install.
9. Safe smooth edge design to protect cable.
10.Easy for line check and cleaning , easy maintained.

Application

Installation Notice:

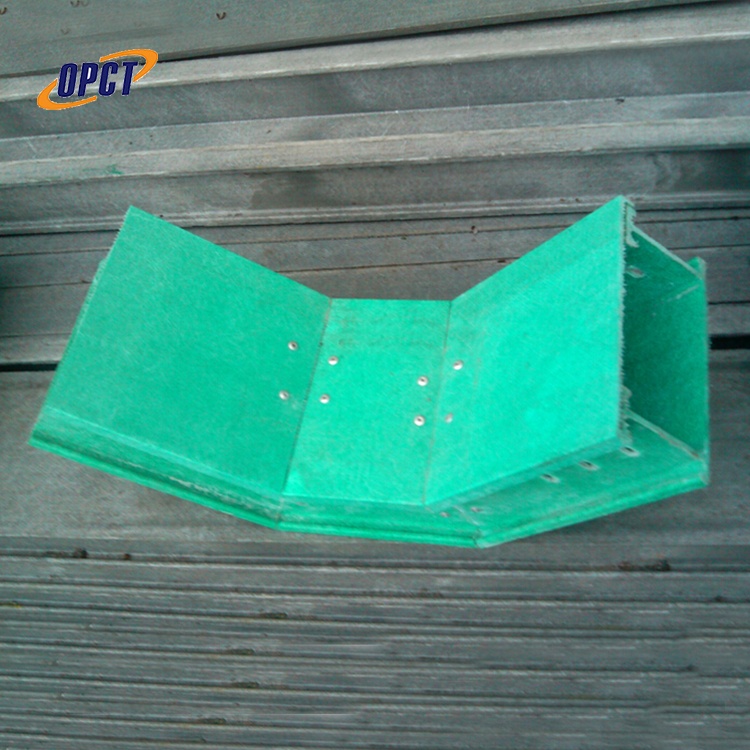

Bends, Risers, T Junctions, Crosses & Reducers can be made from ladder Cable tray straight sections flexibly in projects.
Trays shall be supported at a maximum span of 2m by trapeze, wall, floor or channel mounting methods and will not exceed maximum loads as specified by the manufacturer.
Cable Tray systems can be safely employed in places where the temperature ranges between -40°C and +150°C without any change to their characteristics.

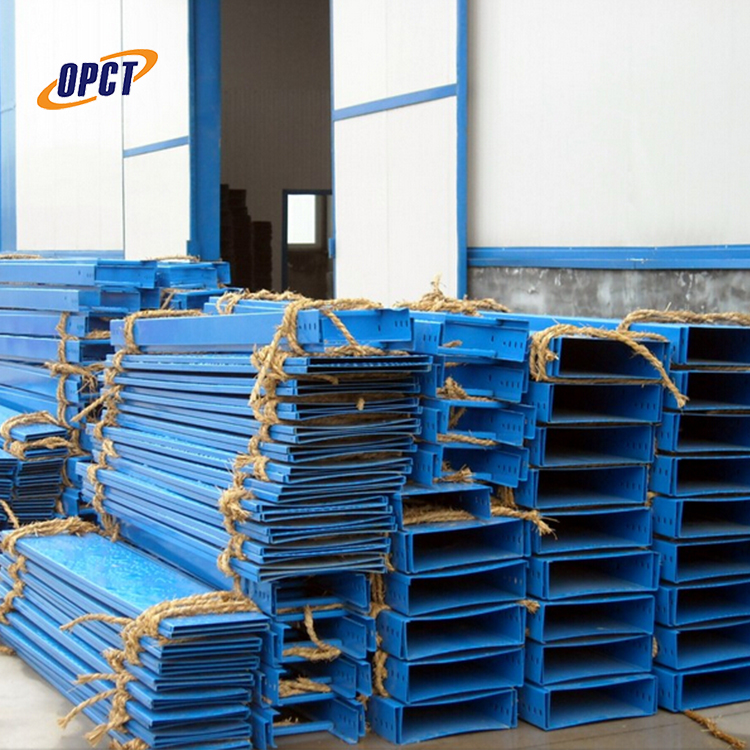

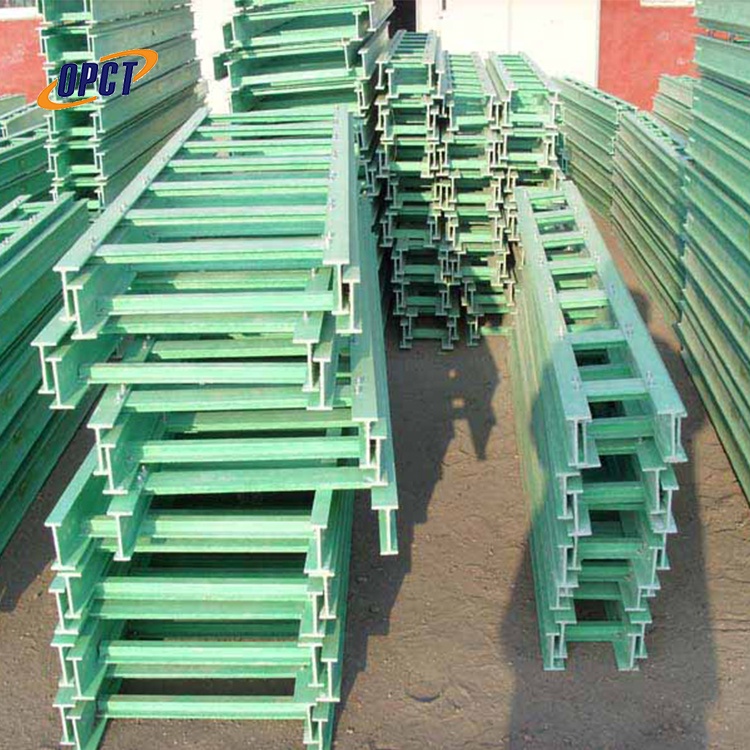

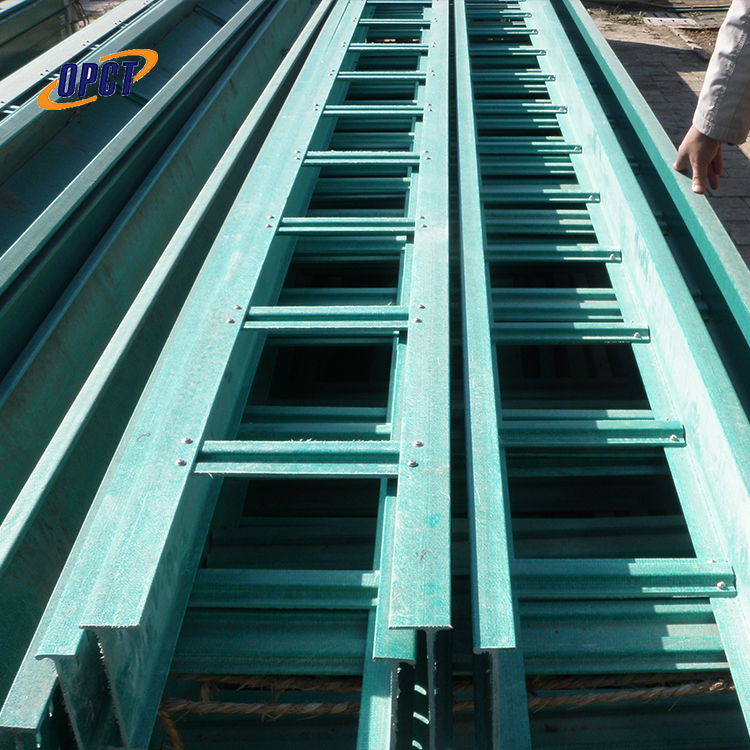

Product show

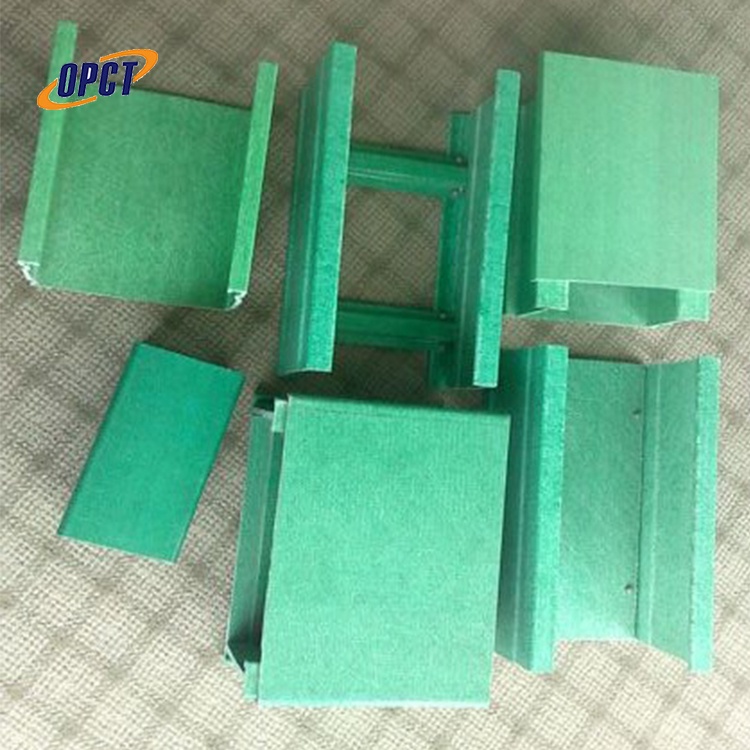

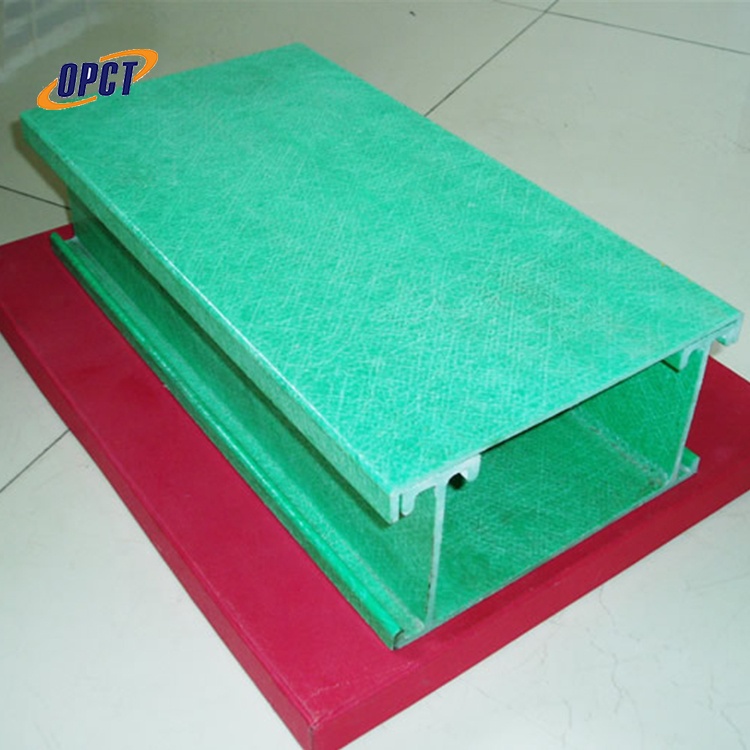

Types of shap

Sell various kinds of FRP cable tray according to the drawing and requirement of customers

1. The cable trays have wide application, high intensity, light weight, reasonable structure, superior electric insulation, low
cost, long life, strong corrosion resistance, easy construction, flexible wiring, standard installation, attractive appearance etc features.
2. Installation way of the cable trays are flexible. They could be laid overhead along with the process pipeline, lifted between floors and girders, installed on inside and outside wall, pillar wall, tunnel wall, furrow bank, also could be installed on the open air upright post or rest pier.
3. The cable trays could be laid horizontally, vertically. They could turn angle, divided according to "T" beam or crossly, could be widened, heightened, changed track.

Spatial layout diagram of cable tray

Notes:

1. Each ends of cable trays should be connected by 6 holes when the height is 50-100 mm; when their height is 150-220 mm, holes should be 12.
2. Support distance: it should not be more than the support distance and load capacity allowed by load curve.
3. Width of cable trays: some remarkable room should be served when you choosing the cable trays width, in order to add cables in the near future.
4. Laying separately: when electric cables and controlling cables are few, they could be laid in the same cable tray, as long as they are laid separately by clapboard.
5. Fixing cables: when collecting cable trays are laid horizontally, connections among trays should be set on 1/4 of skip
distance, horizontal cables should be fixed every 2 meters, and vertical cables should be fixed every 1.5 meters.
6. cable trays device should have another grounding equipment.

Packaging & Shipping

>> Packing: According to customer's demand
>> Delivery: Within 30 days after the payment was received.

Company Information

HEBEI DONGDING CHEMICAL TRADE CO.,LTD is made up of several manufacturing enterprises, is a high tech enterprises that collection of sale for project consulting, designed and developed, engineering design, materials purchasing, transport of goods, equipment installation and training debugging, and has passed ISO 9001:2015 international quality management system certification, our company is the national foreign trade, the general administration of customs approved the company has import and export right.
We mainly produce potassium sulfate production equipment , FRP tank production equipment , FRP Pultruded products(include FRP Square tube/Rectangular tube /Round tube /Rod / U channel / I beam / Flat / Angle /Decking panel /Plum blossom tube /Ladder carling/Ladder crossgirder ), Frp Pipe , Frp Tank , FRP septic tank , Frp Water Tank , FRP grating , Cooling tower ,FRP scrubber,Cable tray, Frp Cover , Frp Flange , FRP rock bolt ,FRP handrail and so on,Looking forward to your visit and communication!

FAQ

1. Q: Are you Trading Company or Manufacturing Factory?
A: We are both manufacturer and trading company. We have our own factory for almost seven years, and we have better service of overseas customers. Welcome to send your inquiry!

2. Q: How about the Delivery time?
A: 60days after receiving the deposit based on the MOQ. Normally, 30-35days to finish the order for a 20ft
container. Welcome to ask for the detailed delivery time according to your order quantity!

3. Q: How can you guarantee the product quality?
A: We have the quality control system ISO9001:2015, and it's been followed strictly. We also have the professional QC team, and each our package worker will be in charge of the final inspection according to the QC instruction before packing.

4. Q: What is about the payment terms.
A: Basically, the payment terms are T/T, L/C at sight. Western Union, Alipay.

5. Q: Can you do OEM for me?
A: We accept all OEM orders,just contact us and give me your design,we will offer you a reasonable price ASAP.
